Product Introduction

The Custom Brass Sheet Metal Electronic Contact Ring is a precision-formed conductive component used in electrical connector assemblies and compact electronic hardware. Its cylindrical slotted structure is designed to provide stable contact, controlled flexibility, and reliable fitting inside connector housings, terminal cavities, or custom electronic assemblies.

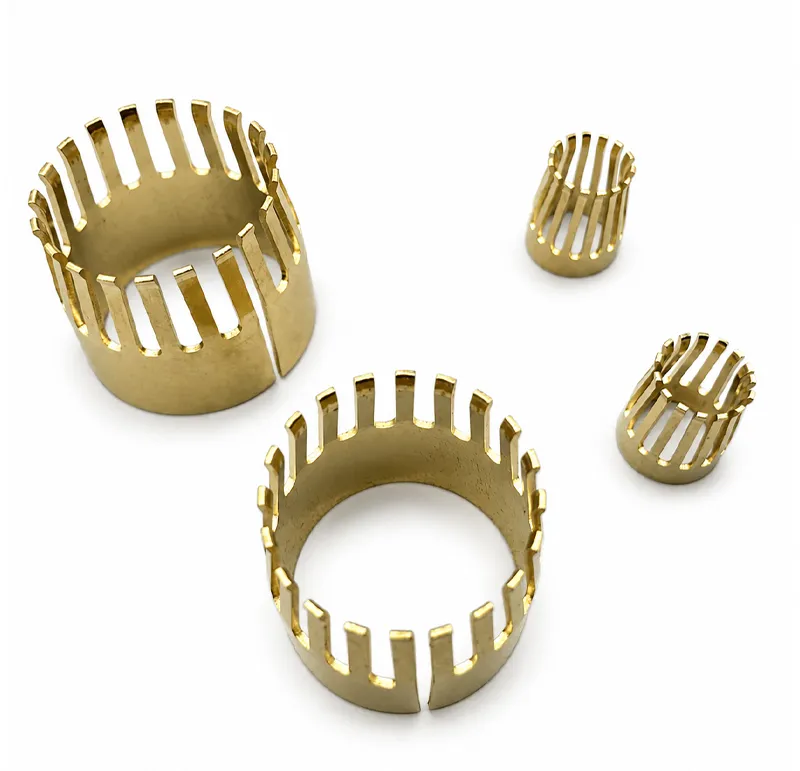

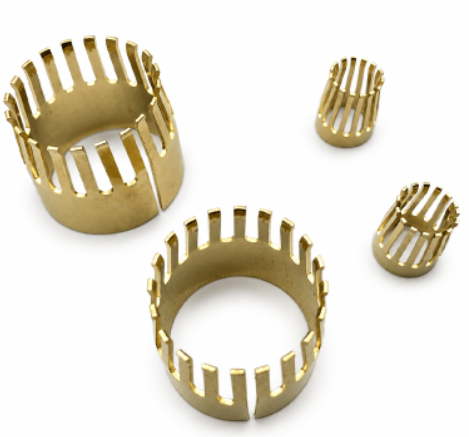

The product shown features a thin-wall metal ring with evenly spaced vertical slots. This structure allows the contact area to maintain elasticity while supporting electrical conductivity and mechanical positioning. Brass or copper alloy materials are commonly selected for this type of component because they offer good conductivity, formability, and surface treatment compatibility.

Shenzhen Fuwanglong Hardware provides drawing-based customization for electronic contact rings, connector spring contacts, conductive sleeves, terminal inserts, and other precision sheet Metal Contact Parts. Dimensions, material thickness, plating finish, slot shape, opening width, and packaging method can be adjusted according to the customer’s application.

Key Specifications & Parameters

Product Type
Custom sheet metal electronic contact ring

Material
Brass, copper alloy, phosphor bronze, stainless steel, or customized metal material

Structure
Slotted cylindrical contact ring with open seam design

Processing Method
Precision stamping, forming, bending, cutting, deburring, and surface treatment

Surface Finish
Gold plating, nickel plating, tin plating, polishing, passivation, or customized conductive finish

Size
Customized according to drawing or sample

Thickness
Customized according to electrical, forming, and assembly requirements

Tolerance
Available according to customer drawing requirements

Main Functions

Electrical Contact and Conductive Connection
The brass contact ring is designed to support stable electrical connection inside connector systems. Its conductive metal surface helps transfer current or signal between mating parts, making it suitable for compact electronic and electrical assemblies.

Elastic Contact Support
The vertical slot structure provides controlled flexibility around the ring body. This allows the component to maintain contact pressure during insertion, assembly, or repeated connection, depending on the final design requirement.

Compact Connector Installation
The cylindrical form is suitable for use in limited internal spaces. It can be installed inside plastic connector housings, terminal cavities, sensor modules, or precision electronic hardware where space-saving contact design is required.

Mechanical Positioning Inside Assemblies
Besides conductivity, the part can also provide positioning and retention support. The formed ring body helps keep the contact area aligned during connector assembly and improves fit stability within the designed cavity.

Surface Protection and Conductivity Enhancement
Different plating options can be selected according to the application. Gold plating is suitable for stable signal contact, nickel plating improves surface protection, and tin plating can be used for cost-sensitive electrical connection parts.

OEM Drawing-Based Production
The product can be customized from customer drawings or samples. Slot width, ring diameter, height, material thickness, open seam design, plating type, and packaging can all be adjusted for specific connector or device projects.

Specific Application Scenarios

Consumer Electronics Connectors
These slotted contact rings can be used in compact electronic connectors, charging interfaces, device terminals, sensor contacts, and internal conductive assemblies where small size and stable contact are important.

Automotive Electrical Systems
The component is suitable for automotive connector housings, wiring harness terminals, sensor connection modules, battery signal terminals, and vehicle electronic control units that require reliable conductive contact parts.

Communication Equipment Hardware
Custom brass contact rings can be used in communication modules, signal connectors, terminal blocks, telecom control equipment, and RF-related hardware assemblies depending on the final electrical design.

Industrial Control Devices
The part can be applied in relays, control panels, automation connectors, electrical terminals, and machine control modules where formed metal contact components are needed for stable connection.

Energy Storage and Power Equipment
For battery management systems, power distribution devices, and energy storage control units, the product can be customized as a conductive sleeve, terminal insert, or connector contact component.

Prototype and New Product Development
With custom sample support, this product is suitable for early-stage connector development, electrical assembly testing, design verification, and small-batch pilot production before mass manufacturing.

FAQ

Q1: Can this brass electronic contact ring be customized by drawing?
A1: Yes. Shenzhen Fuwanglong Hardware can manufacture the product according to your 2D drawing, 3D file, sample, or technical requirement. Diameter, height, thickness, slot structure, plating, and tolerance can be customized.

Q2: What materials are available for this type of contact part?
A2: Common materials include brass, copper alloy, phosphor bronze, stainless steel, and other conductive or elastic metal materials. The final material can be selected based on conductivity, strength, forming performance, and cost.

Q3: What surface treatments can be used for electronic contact rings?
A3: Gold plating, nickel plating, tin plating, polishing, passivation, and other conductive finishes can be provided according to the application environment and electrical contact requirements.

Q4: Is this product suitable for small electronic connectors?
A4: Yes. The slotted cylindrical structure is suitable for compact connector assemblies, terminal inserts, signal contact parts, and small electronic hardware where limited space and stable connection are required.

Q5: Can you provide samples before mass production?
A5: Yes. Sample production is available for testing and design verification. Customers can confirm size, fit, surface finish, and assembly performance before moving to batch production.

Q6: What information is needed for quotation?
A6: Please provide drawings or samples, material requirements, size, thickness, quantity, surface treatment, tolerance, and application details. These details help us evaluate the manufacturing process and prepare an accurate quotation.
