Product Introduction

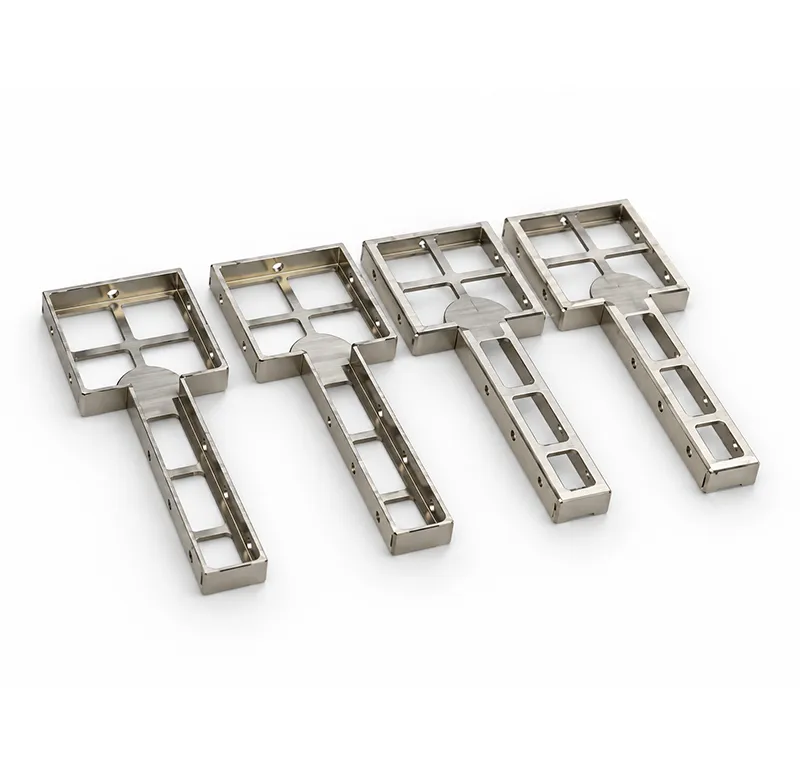

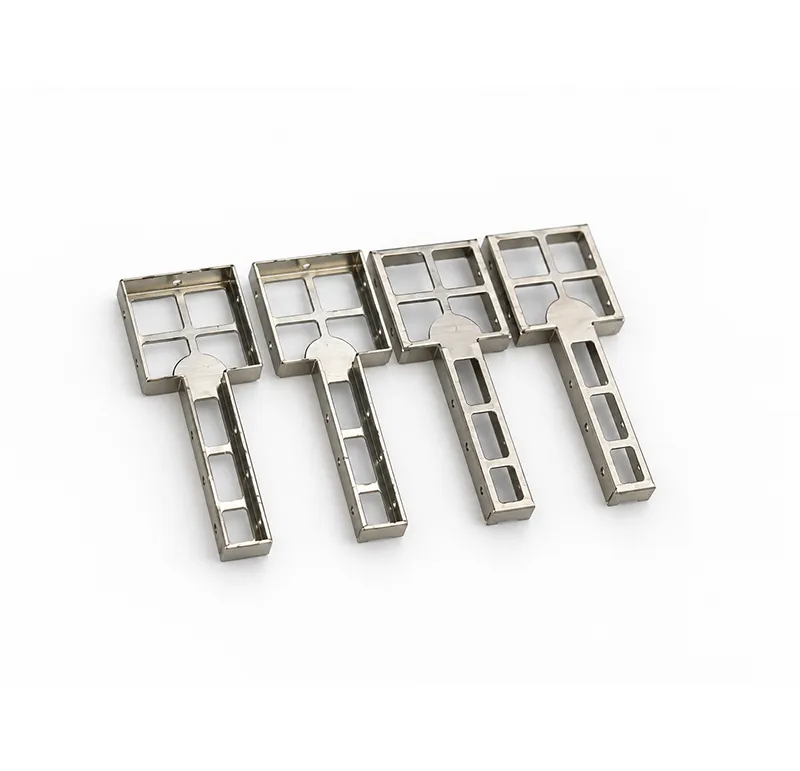

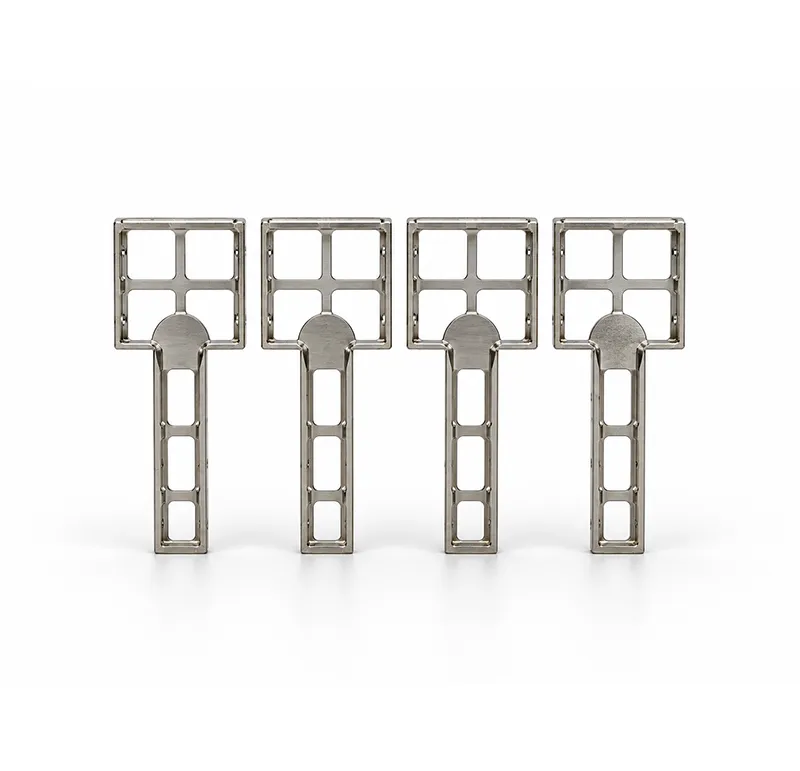

The Custom T-Shaped Aluminum Housing for Electronic Modules is a precision-machined metal enclosure developed for compact electronic assemblies that require a structured internal space and rigid external support.

The housing features a distinctive T-shaped profile with multiple recessed sections and an extended narrow section. These areas can provide separated spaces for electronic components while helping organize the internal assembly. Side mounting holes allow the housing to be secured within the corresponding equipment structure.

The aluminum construction provides a balance between structural rigidity and relatively low weight. The machined edges and smooth metallic surface also give the component a clean appearance suitable for compact electronic equipment.

Rather than being a standardized off-the-shelf enclosure, this type of component is designed around the dimensions, internal arrangement, and mounting requirements of the electronic assembly it supports.

Key Specifications & Parameters

Product Type: T-shaped aluminum electronic housing / CNC machined module enclosure / compact metal housing

Material Options: Aluminum alloy, 6061 aluminum, 6063 aluminum, stainless steel, or other suitable metal materials

Processing Methods: CNC milling, CNC drilling, pocket machining, edge finishing, deburring, surface treatment, and assembly support

Surface Finish Options: Anodizing, sandblasting, brushing, polishing, powder coating, electroplating, or other suitable finishes

Structure Features: T-shaped profile, multiple recessed compartments, elongated support section, side mounting holes, compact body, machined edges, and separated internal spaces

Customization Items: Overall dimensions, compartment layout, wall thickness, mounting hole position, pocket depth, handle section dimensions, surface finish, and marking

Application Direction: Compact electronic module housings and structured metal enclosures for small electronic assemblies

Main Functions

Internal Component Organization

The multiple recessed sections create separated areas within the housing, helping organize small electronic components and reducing unnecessary movement between functional areas.

Structural Protection

The aluminum body provides a rigid external structure around internal electronic assemblies, helping protect components from routine handling and mechanical contact.

Secure Equipment Mounting

The side mounting holes provide defined fixing points for installation inside a larger electronic device or supporting structure.

Compact Assembly Integration

The T-shaped geometry allows the housing to follow a compact equipment layout while incorporating both a wider main body and a narrower extended section.

Lightweight Metal Construction

Aluminum provides useful structural strength without creating an unnecessarily heavy enclosure, making the housing suitable for compact electronic assemblies.

Machined Surface Accuracy

CNC machining allows the recessed sections, openings, edges, and mounting locations to be formed with controlled dimensions for integration with corresponding electronic components.

Specific Application Scenario

Compact Electronic Module Housing

This T-shaped aluminum housing is suited to compact electronic modules where several components need to be arranged within a structured metal body. The recessed areas can separate individual component positions, while the extended section provides additional space for connecting or supporting related parts.

The side mounting holes allow the finished assembly to be fixed inside a larger device or equipment frame. Its compact metal construction is particularly suitable for electronic assemblies where space utilization, structural stability, and organized internal component placement are important.

FAQ

Q1: What is this T-shaped aluminum housing used for?

A1: It is designed for compact electronic module assemblies that require a rigid metal structure with separated internal sections and defined mounting points.

Q2: Is this a standard electronic enclosure?

A2: No. The pictured component has a specialized T-shaped structure and is intended for applications with specific internal layout and mounting requirements.

Q3: What material is suitable for this type of housing?

A3: Aluminum alloy is suitable for the shown structure because it combines relatively low weight with good mechanical rigidity and machinability.

Q4: What are the recessed sections used for?

A4: They can provide separated spaces for positioning electronic components or functional parts within the overall housing structure.

Q5: What surface finishes can be applied?

A5: Common options include anodizing, sandblasting, brushing, polishing, powder coating, and other metal finishing processes according to the intended product appearance and requirements.

Q6: What information is useful when developing a similar housing?

A6: Useful reference information includes dimensional drawings, component layout, mounting hole locations, pocket dimensions, material requirements, and the available installation space.
