Product Introduction

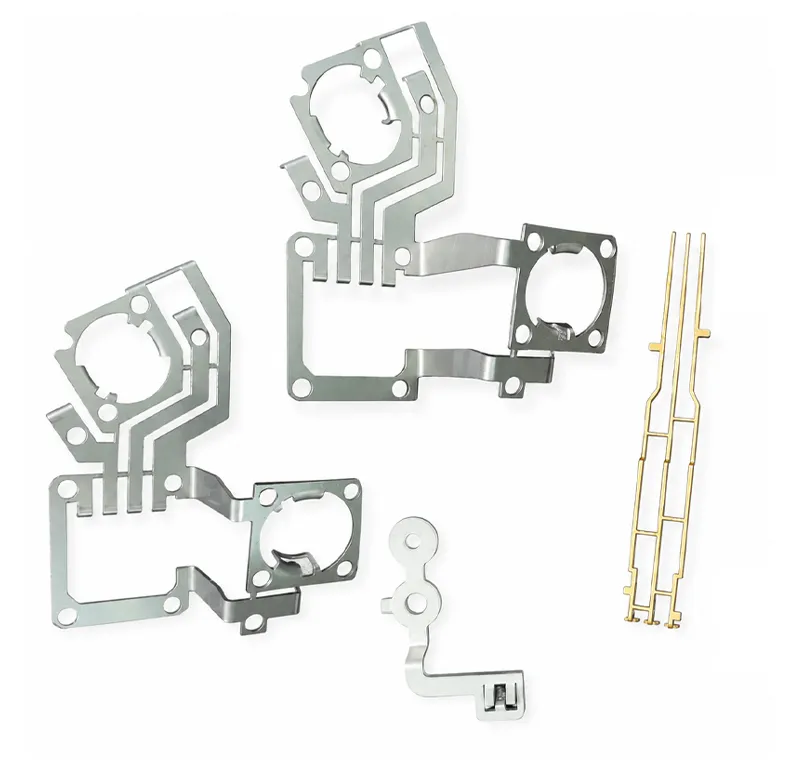

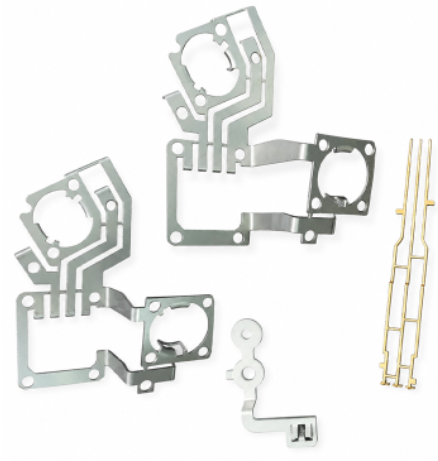

The Custom Automotive Busbar and Metal Contact Parts are precision sheet metal components used in automotive electrical systems and EV module assemblies. This product group includes stamped conductive frames, Busbar Contact Plates, thin metal connection strips, formed contact parts, and small electrical mounting components.

These parts are designed to combine electrical connection and mechanical positioning in compact installation spaces. The larger stamped frames can be used around electronic modules, sensors, plastic housings, or PCB structures, while the narrow copper or brass contact strips are suitable for current transfer, signal connection, or battery-related electrical paths.

In modern vehicles, especially electric vehicles, compact conductive parts are widely used in battery packs, battery management systems, power distribution units, control modules, charging systems, and sensor assemblies. The product structure shown here reflects typical requirements in automotive electronics: accurate holes, stable contact areas, lightweight open-frame geometry, formed sections, and clean conductive surfaces.

Key Specifications & Parameters

Product Type: Automotive busbar contact parts / stamped metal contact frames / conductive sheet metal electrical components

Material Options: Copper, brass, phosphor bronze, stainless steel, nickel silver, beryllium copper, aluminum alloy, or customized conductive metal materials

Processing Methods: Precision stamping, metal etching, laser cutting, punching, bending, forming, deburring, cleaning, plating, surface treatment, and assembly support

Surface Finish Options: Nickel plating, tin plating, gold plating, silver plating, anti-oxidation treatment, passivation, polishing, or customized conductive finishing

Structure Features: Conductive path design, complex open-frame cutouts, circular module openings, mounting holes, formed bridge sections, narrow contact strips, grounding areas, and compact assembly geometry

Customization Items: Outer shape, contact path layout, hole position, material thickness, bending height, plating layer, contact area design, assembly orientation, and packaging method

Application Direction: EV battery modules, automotive busbar systems, battery management units, power distribution units, sensor modules, electronic control units, connector assemblies, and vehicle electrical hardware

Main Functions

Electrical Current Transfer
The copper, brass, or conductive metal areas can be used to transfer current between battery modules, terminals, control boards, or power distribution points. This makes the parts suitable for vehicle electrical assemblies where stable conductive performance is required.

Signal Connection in Compact Modules
Some thin stamped contact paths are suitable for signal transmission inside automotive electronics, sensor modules, battery management units, and control hardware. Their compact layout helps save internal space while keeping electrical paths organized.

Grounding and Shielding Support
Stamped metal contact frames can also work as grounding components in electronic modules. By connecting designated metal areas, they help create reliable grounding paths and reduce electrical instability in sensitive systems.

Module Positioning and Fixing
The large cutouts, screw holes, and shaped frames help align the part with plastic housings, circuit boards, sensor openings, or mechanical supports. This improves assembly accuracy and keeps internal components in the correct position.

Lightweight Conductive Structure
The open-frame design removes unnecessary material while retaining required contact and mounting areas. This helps reduce part weight and makes the structure more suitable for compact EV and automotive electronic assemblies.

Integrated Electrical and Mechanical Function
A single stamped metal part can provide conductive connection, grounding, fixing, spacing, and positioning at the same time. This reduces the need for multiple separate parts and helps simplify internal module design.

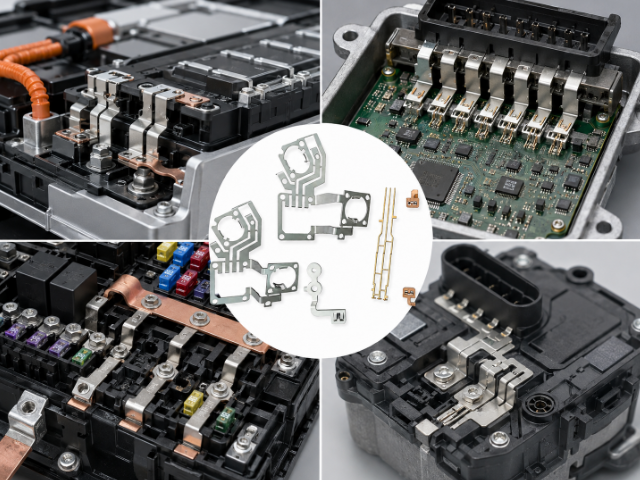

Specific Application Scenarios

EV Battery Module Connection
These metal contact parts can be used in EV battery module systems for current paths, signal points, battery management connection areas, and compact conductive layouts around battery-related structures.

Battery Management System Hardware
In BMS assemblies, stamped conductive frames and contact strips may support signal collection, grounding, terminal connection, and positioning of board-level or module-level electrical parts.

Automotive Power Distribution Units
Busbar contact plates are commonly used in power distribution boxes, fuse units, relay assemblies, and electrical control areas where current needs to be transferred safely within a limited space.

Automotive Sensor Assemblies
The circular openings and shaped mounting areas make these parts suitable for sensor modules, motor-related sensors, control units, and compact automotive electronic devices requiring accurate alignment.

Electronic Control Units
Stamped metal contact frames can be used inside ECUs, control modules, and vehicle electronic housings where grounding, signal contact, internal support, or metal connection points are required.

Connector and Terminal Systems
The narrow metal strips and small contact pieces can be applied in connector housings, terminal blocks, plug-in electrical interfaces, and automotive wiring connection systems.

FAQ

Q1: What are automotive busbar and metal contact parts used for?
A1: They are used for current transfer, signal connection, grounding, positioning, and internal fixing in EV battery modules, automotive electronics, power distribution units, sensor assemblies, and connector systems.

Q2: What is the difference between a busbar part and a general contact part?
A2: A busbar part usually handles current transfer between electrical points, while a contact part may focus on signal connection, grounding, terminal contact, or positioning inside an electronic assembly. Some stamped parts can perform both functions.

Q3: Why are there many holes and open cutouts in these parts?
A3: The holes are used for mounting, positioning, sensor clearance, or assembly alignment. The open cutouts reduce material weight, avoid interference with other components, and help the part fit into compact electronic modules.

Q4: Which materials are commonly used for automotive conductive parts?
A4: Copper, brass, phosphor bronze, nickel silver, stainless steel, and beryllium copper are commonly used. The selection depends on conductivity, strength, elasticity, corrosion resistance, plating requirement, and application environment.

Q5: What surface finishes are suitable for busbar and contact components?
A5: Common finishes include tin plating, nickel plating, gold plating, silver plating, passivation, polishing, and anti-oxidation treatment. The finish is selected based on conductivity, contact stability, solderability, and corrosion resistance.

Q6: Can these parts be used in electric vehicle battery systems?
A6: Yes. They are suitable for EV battery modules, battery management units, power distribution systems, signal collection structures, and other vehicle electrical assemblies that require compact conductive metal components.
